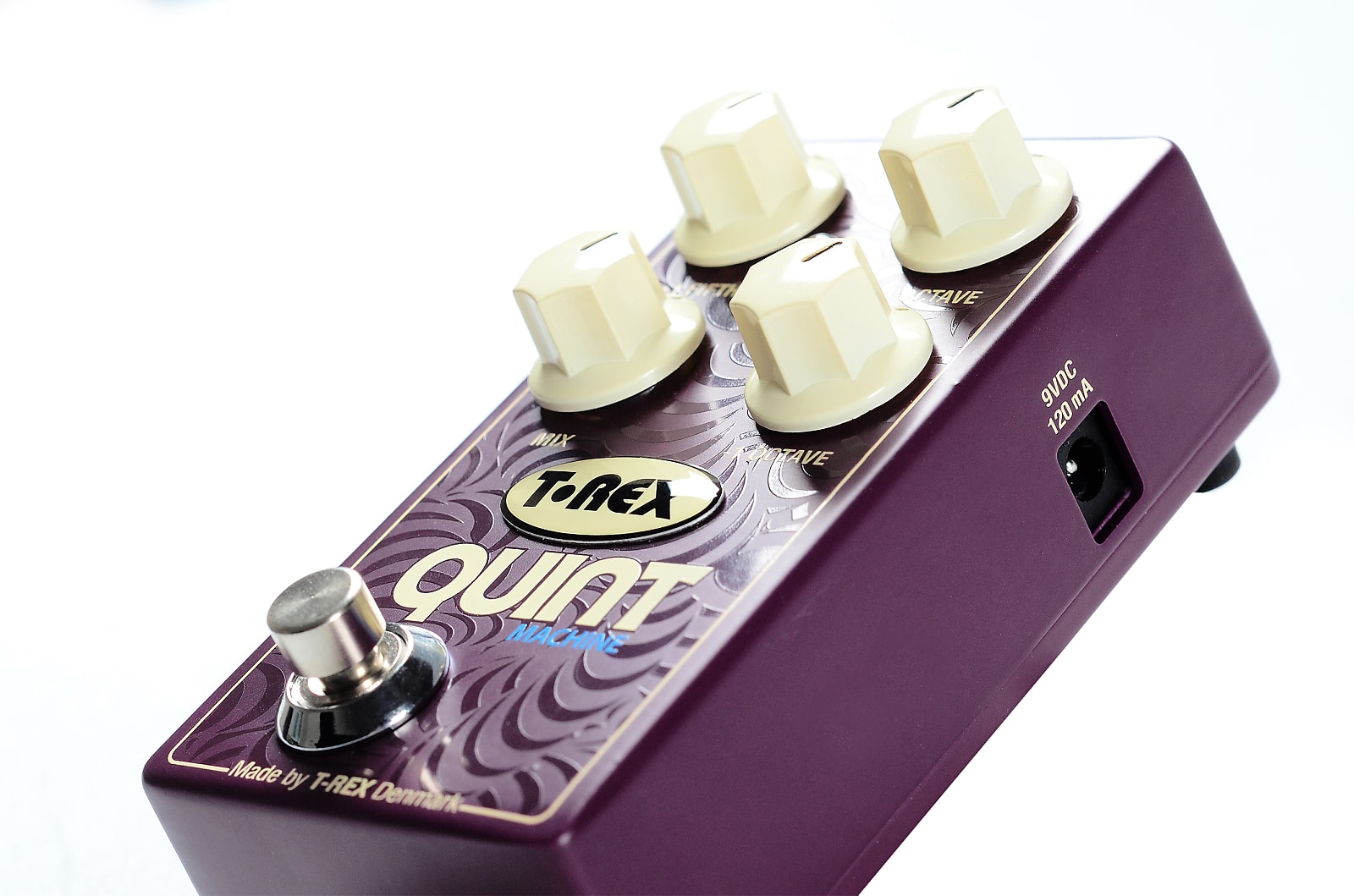

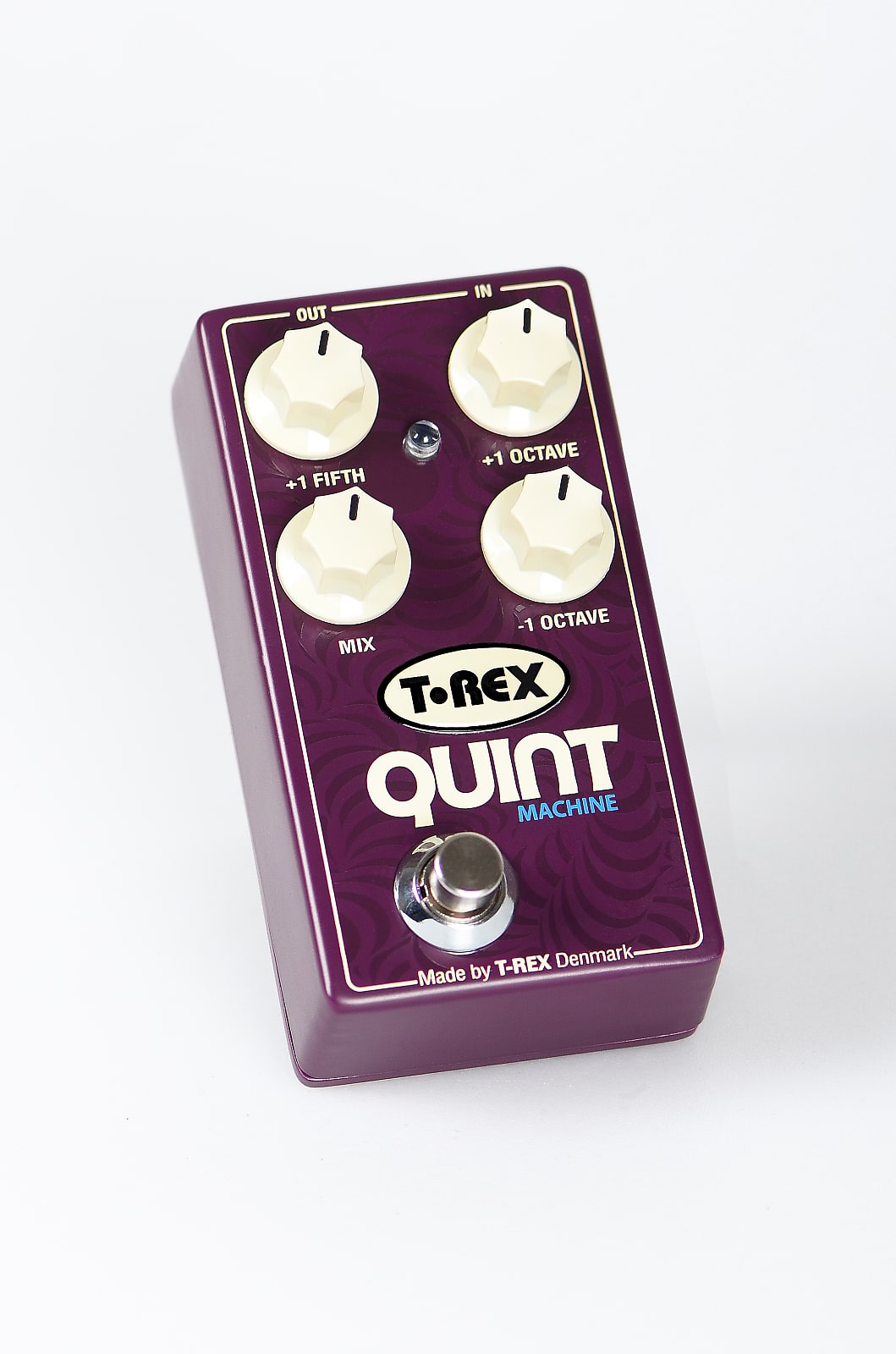

T-Rex Quint Machine Four-Tone Generator Octaver / Pitch Effects Pedal
or
Buy from our Reverb Shop
(While we are working on our eCommerce shop, you can buy this in our Reverb shop at the link above)
HIGHLY TUNABLE OCTAVES + FIFTH
Classic octave doubling is cool, but throwing in a 5th up and giving all 3 modulated sounds their own volume control opens up a whole new world. Sound like a 12-string. Sound like an organ. Get rid of your dry signal and sound like a synth just owning that lonely heart. We built the T-Rex Quint Machine to give you more, and it will keep you discovering new sounds for years.
A WHOLE NEW WORLD OF SONIC POSSIBILITIES
• Octave up, octave down, 5th up
• Individual volume controls, plus master mix
• Ultra-fast polyphonic tracking
• Replicate organ, synth or 12-string sound
• Play power chords on a single note
TECH SPECS
Input impedance @ 1KHz: > 1M Ohm
Output impedance @ 1KHz: < 1K Ohm
Power supply: 9VDC (T-Rex FuelTank)
Minimum power supply voltage: 8VDC
Maximum power supply voltage: 12,5VDC
Current draw @ 9VDC: 145 mA
Maximum input signal Vp-p: 3Vp-p

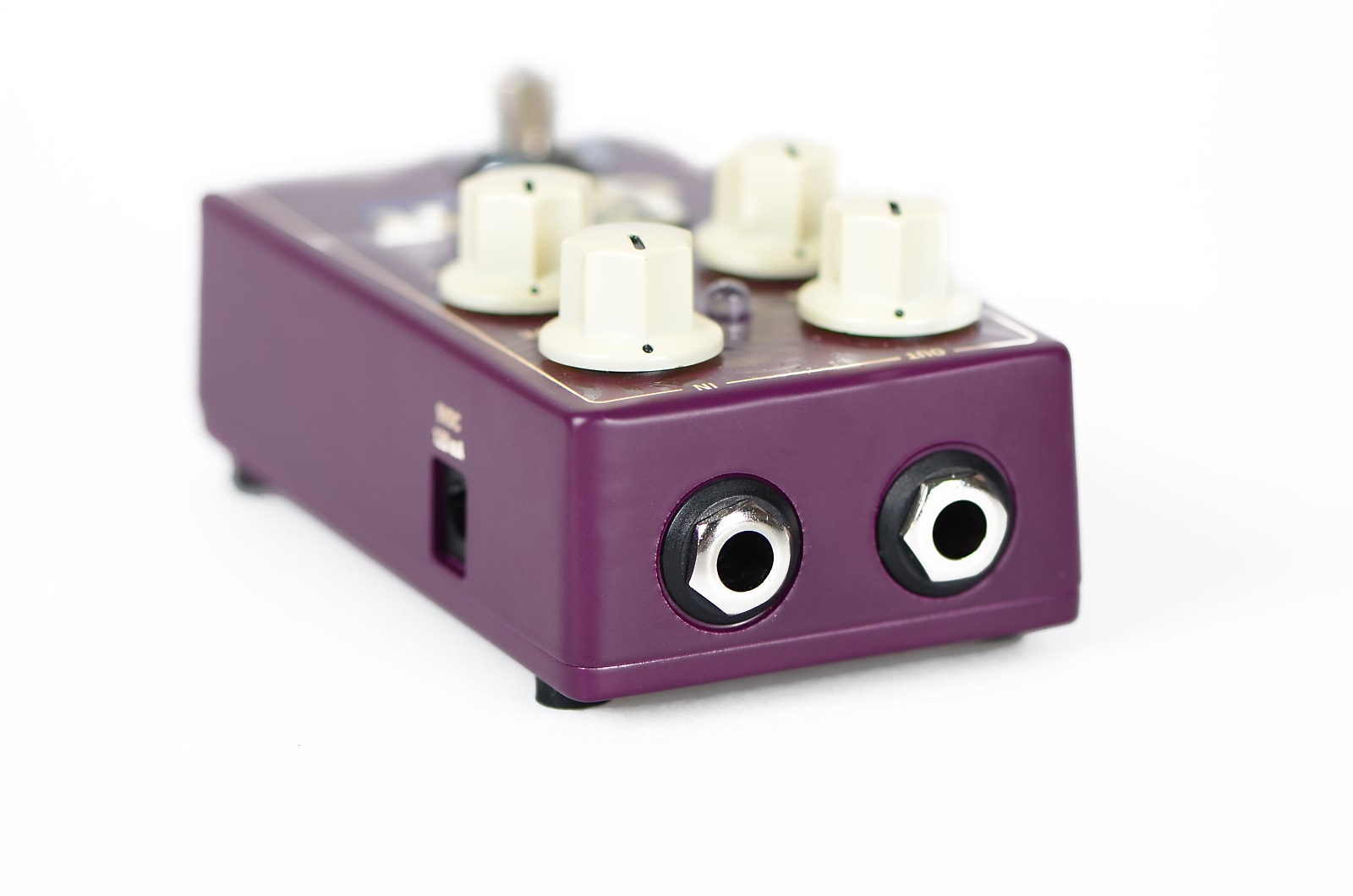

External connectors: Input jack, output jack, 9VDC jack

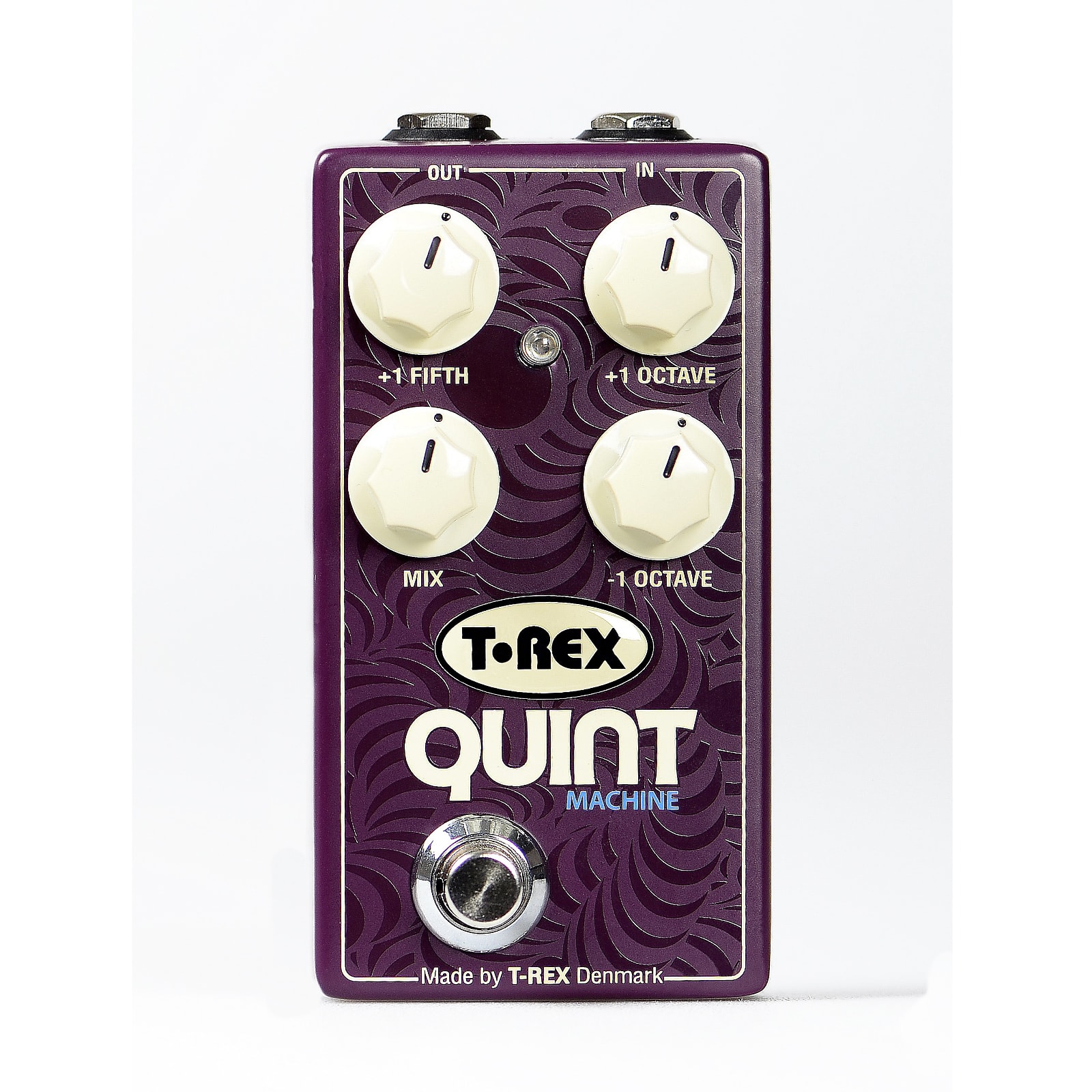

Controls: On/off switch, mix, +1 octave, -1 octave, +1 fifth
Pedal size incl. knobs (W x H x D): 60 x 50 x 117 mm / 2,4 x 2 x 4,6 in
Weight excl. packaging: 0,21 kg / 7,4 oz
