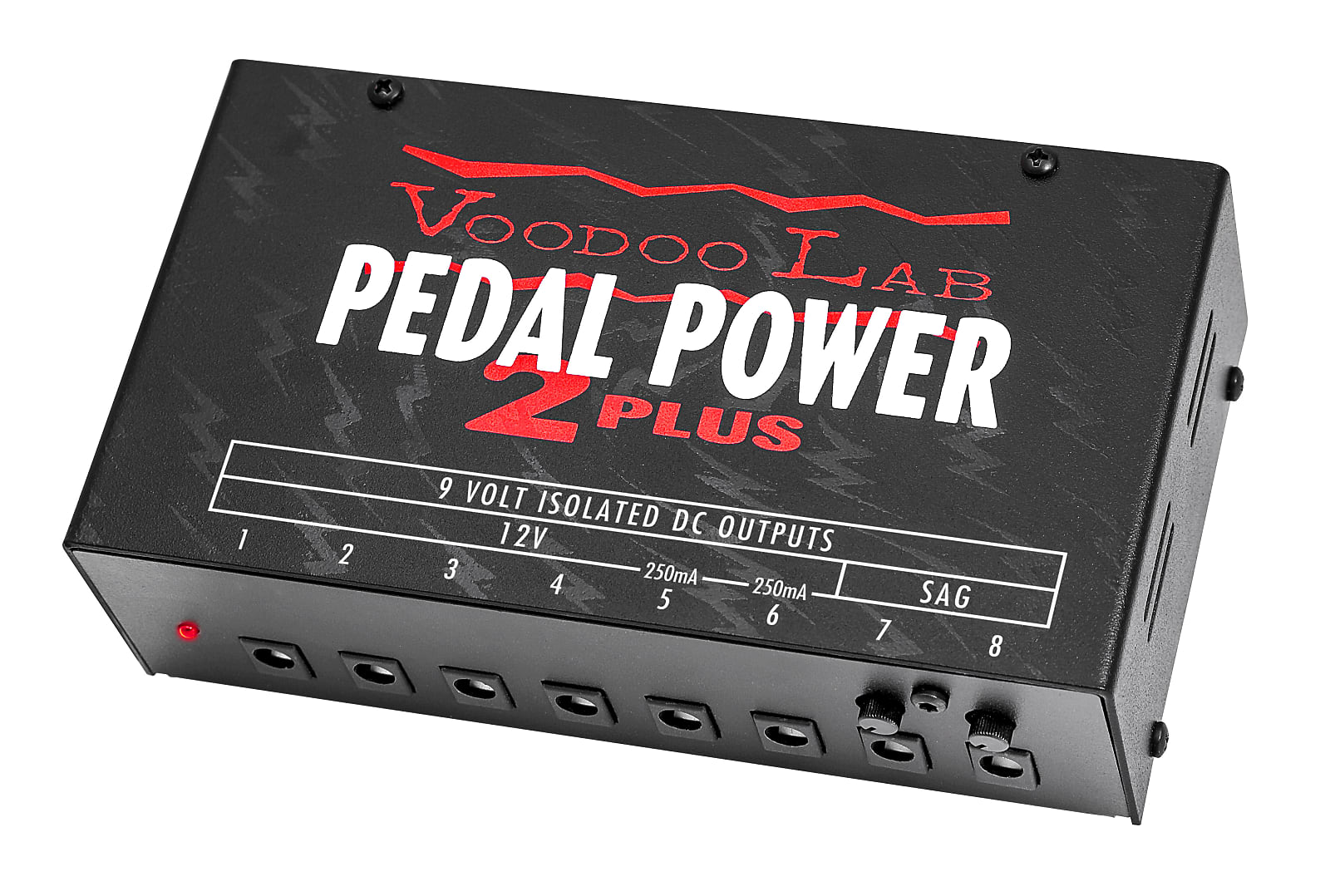

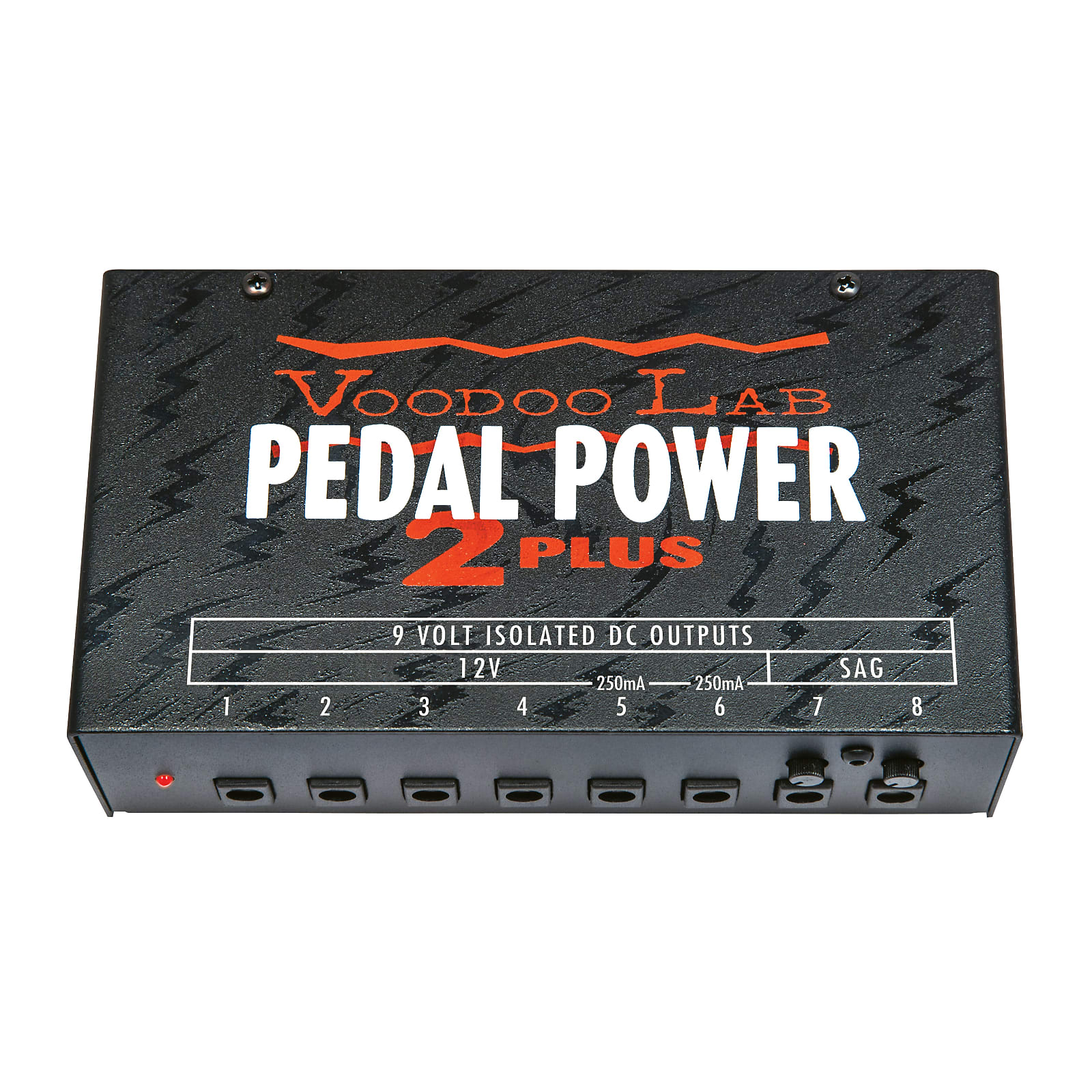

Voodoo Lab Pedal Power 2 PLUS 8-Output Isolated Effects Pedal Power Supply

Great tone begins with clean, isolated power and nothing delivers it better than Voodoo Lab Pedal Power®. Individually hand- built in the U.S.A., Voodoo Lab is the most trusted brand for reliable, noise-free guitar effect power. The number one choice of artists, guitar techs, and rig builders worldwide, Pedal Power delivers pure audiophile-quality power that unveils the sonic potential of your rig.

The Pedal Power 2 PLUS is the most dependable and widely used guitar effect power supply in the industry. This versatile, bullet-proof analog power supply will cleanly and quietly power a wide variety of effects from sensitive vintage battery powered stomp boxes to modern DSP effects. Pedal Power 2 Plus is equipped with eight fully isolated 9V outputs, including six outputs switchable to 12V, two 250mA outs for more power-hungry effects, and two outputs featuring the SAG function that simulates the output of a low battery. 18V and 24V operation are also available by combining outputs with Voodoo Lab doubler cables (cables sold separately). A handy onboard 200-watt courtesy outlet is included for powering an additional device such as an effect, power supply, or wireless system. Pedal Power 2 PLUS is ideal for small to medium pedalboards or as a supplemental power supply in a larger rig.

ELEMENTS OF A GREAT POWER SUPPLY

Isolation:
Ground loops cause hum, and the solution is to break the unwanted ground path. Isolation is the best way to do it. Unlike many power supplies, Pedal Power isolates every output. This eliminates tone-robbing interaction between other effects. Pedal Power runs everything from vintage overdrives to modern digital marvels in a way other power supplies simply can't.

Proprietary Balanced Transformer:
Typical transformers, like those used in a wall wart, create large magnetic fields that cause hum in any audio path near it. Pedal Power uses a custom designed, ultra-low noise toroidal transformer with separate balanced windings for every output allowing even the most sensitive pedals to be dead quiet.

Linear Power:
What's good for charging a cell phone is NOT good for your pedals. While digital switching power supplies are small and inexpensive, they also generate noise. Pedal Power uses an audiophile quality linear supply for consistently stable, clean, pure power.

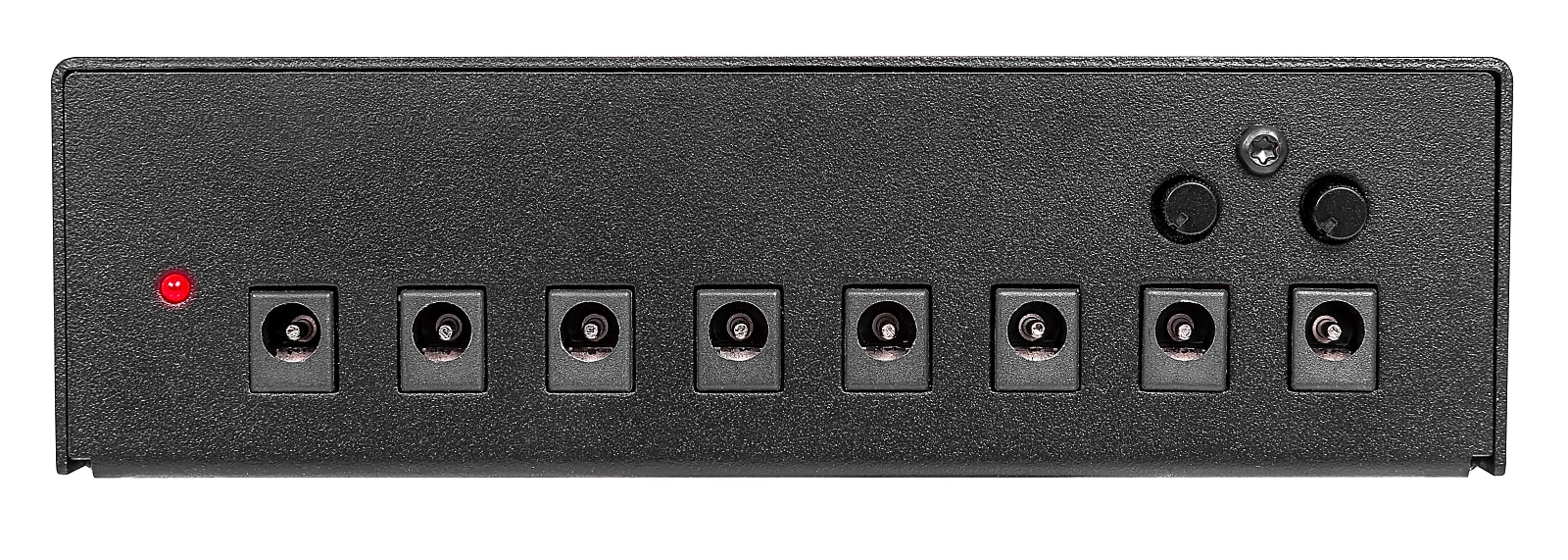

PEDAL POWER 2 PLUS OUTPUT FEATURES:

• 9V/12V Standard Outputs (x4 - Outputs 1 through 4)

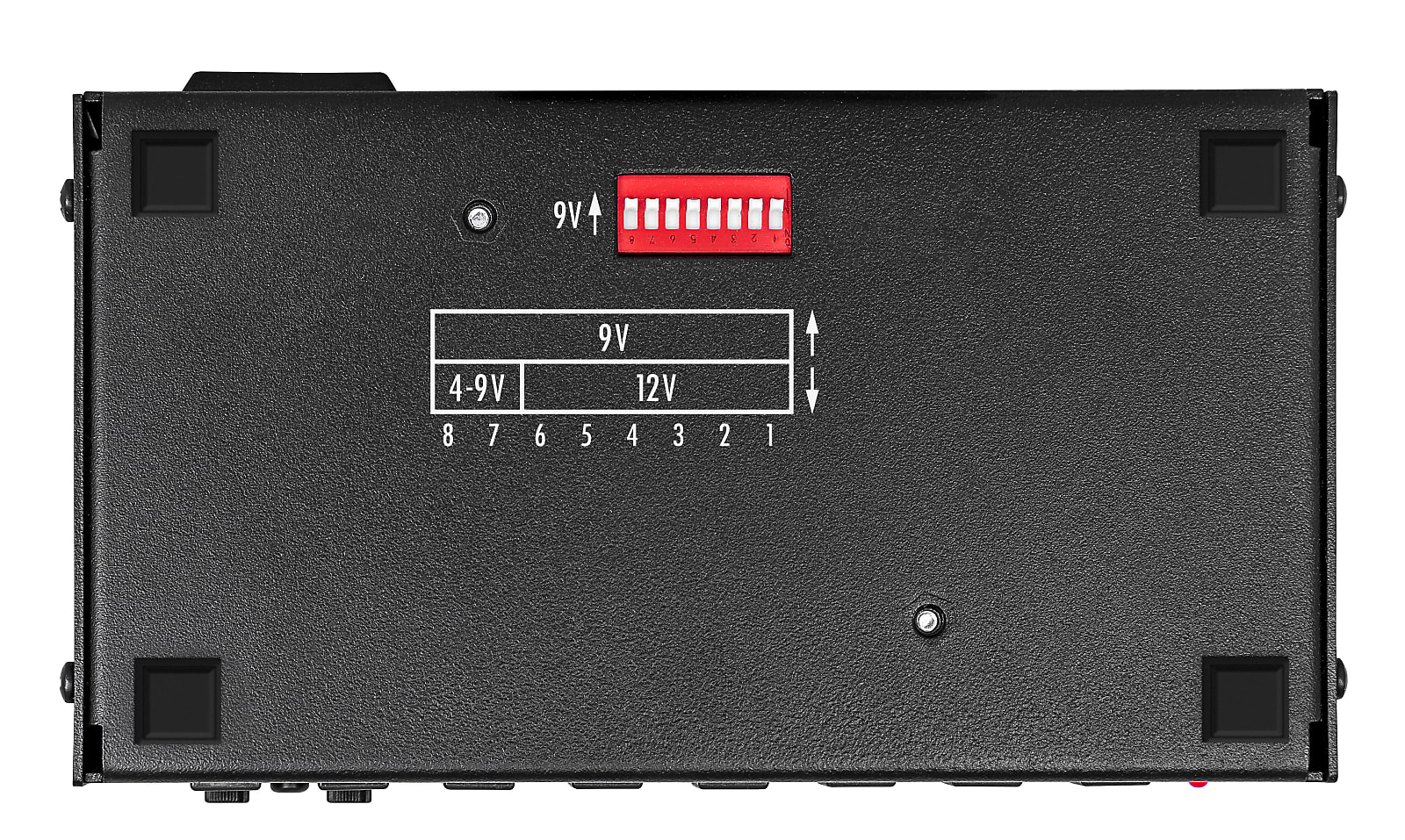

Each of these four 9V 100mA outputs powers any standard 9V battery-operated pedal. 12V operation can be selected with DIP switches set AWAY from NORMAL on the bottom panel of Pedal Power 2 PLUS.

• Two (2) 9V High Current Outputs (x2 - Outputs 5 & 6)
These outputs deliver 250mA for use with higher-current effects. Standard 9V battery-powered effects can also safely power from these outputs. As with outputs 1 through 4, 12V operation can be selected with DIP switches on the bottom panel set AWAY from NORMAL.

• Two (2) 9V Standard Outputs with SAG Control (x2 - Outputs 7 & 8)
These function as standard 9V 100mA outputs when DIP switches are set in the NORMAL position. With DIP switches set AWAY from NORMAL, the SAG controls above outs 7 and 8 are now engaged. These controls enable variable voltage between 9V and 4V. This feature is useful to simulate a low battery in transistor-based fuzz, Octavia, and distortion circuits. For use with digital pedals like delay, chorus, and reverb, the SAG feature should be turned off.

• Higher Voltages and Current Supply
The voltages of any two isolated outputs can be combined using a Voodoo Lab Voltage Doubling Cable. Joining two 9V outputs creates a single 18V out. Joining two 12V outputs creates a single 24V out. The current of two isolated outs can also be combined using a Current Doubler Adapter for currents of up to 500mA.

FEATURES & BENEFITS:
• 8 total isolated outputs
• Four (4) 9V 100mA outputs (switchable to 12V)
• Two (2) 9V 250mA outputs (switchable to 12V)
• Two (2) 9V 100mA outs with SAG feature to simulate the output of a low battery
• Combine outputs for 18V/24V operation and currents up to 500mA (doubler cables sold separately) Linear regulation and toroidal transformer for lowest possible noise

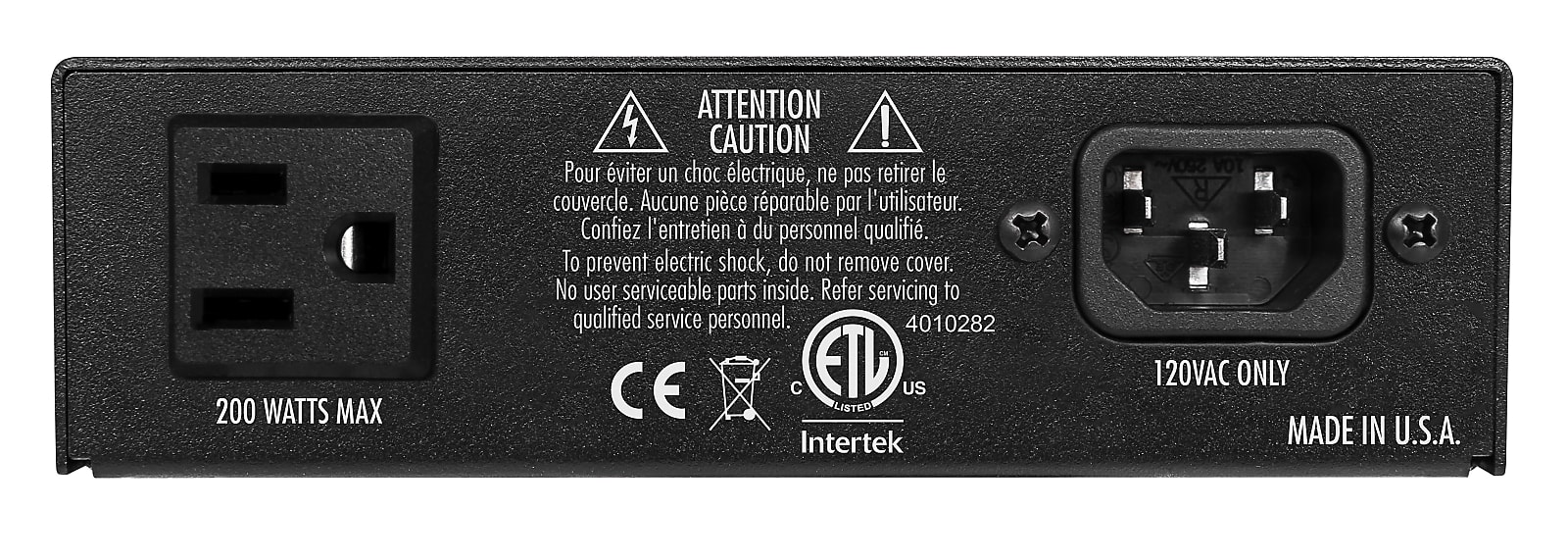

• 200-watt courtesy AC outlet for powering additional devices

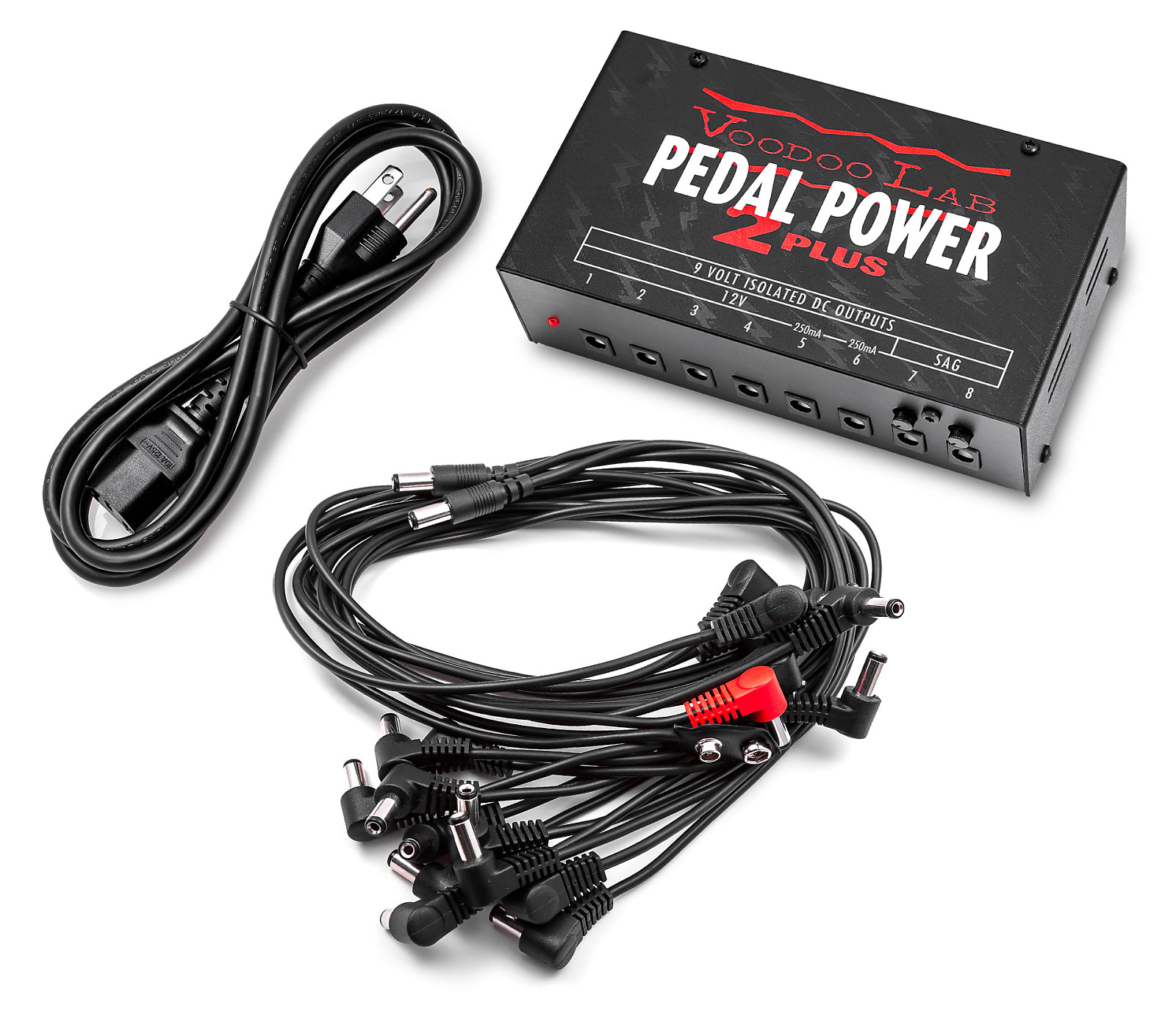

• Power Cables included
• Product Dimensions: 6" wide x 3.4" deep x 1.8" tall (152 x 86 x 44 mm)
• Product Weight: 2 lbs. (0.91 kg)
• Hand-built in the U.S.A.
• 5-year warranty
