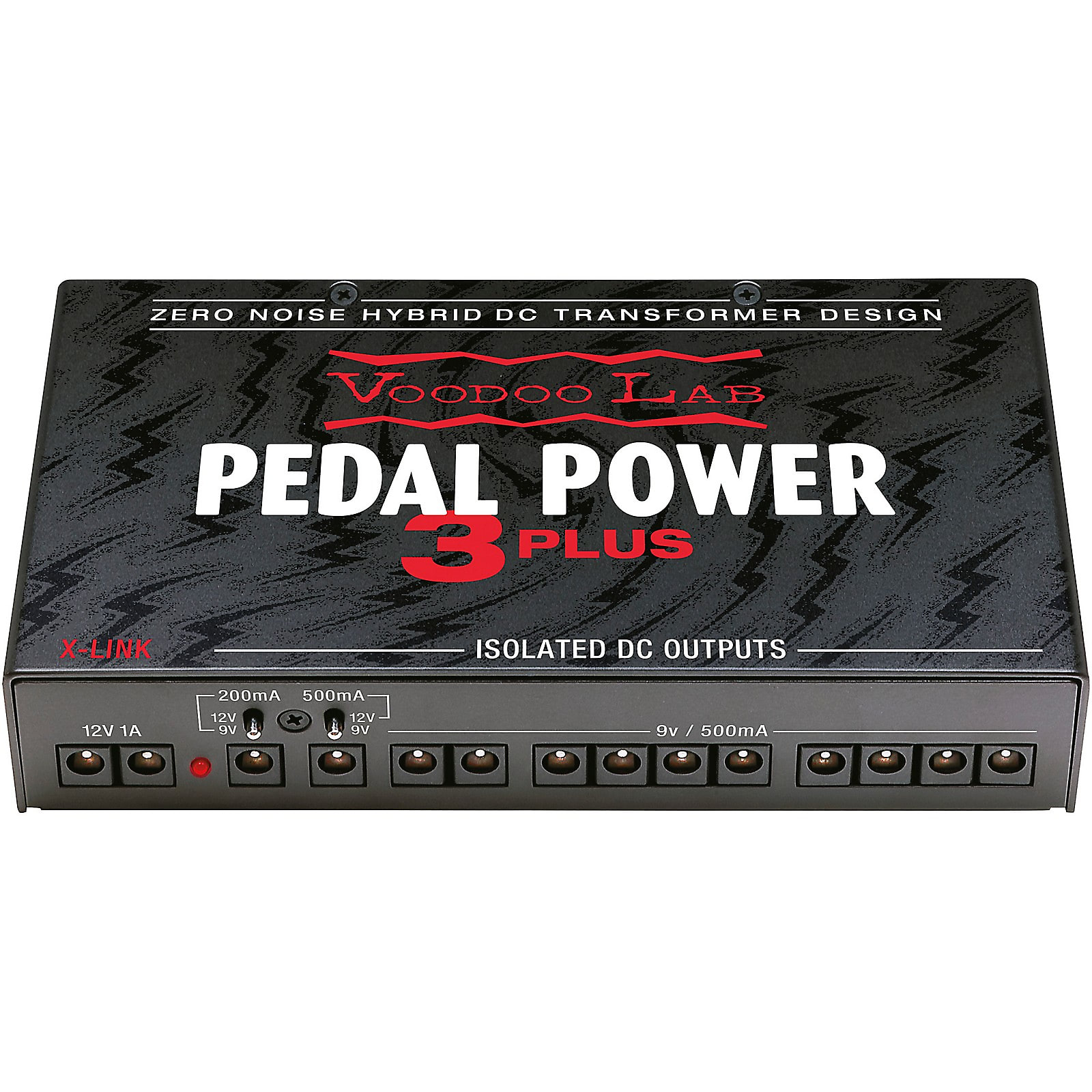

Voodoo Lab Pedal Power 3 PLUS 12-Output Isolated Effects Pedal Power Supply

The Pedal Power 3 series is the first lightweight, high current, international voltage power supply to deliver zero-noise performance. Its innovative Hybrid DC transformer design integrates exotic components, linear regulation, and computer optimized filtering to establish industry-leading audiophile quality power that unveils the hidden sonic potential of any rig. From standard battery-operated pedals to modern high current DSP effects, Pedal Power 3 PLUS combines the best of timetested analog engineering with cutting-edge technology to produce the cleanest, most reliable power in the business.

All Isolated Outputs
Equipped with twelve galvanically isolated DC outputs, Pedal Power 3 PLUS eliminates ground hum and unwanted interaction between pedals. Each output supplies 9V DC with two featuring a voltage selector switch for 12V DC operation. 18V and 24V pedals can be powered by combining outputs with an optional voltage doubler cable.

Powerful
Each Pedal Power 3 PLUS output delivers up to 500mA of current to supply power-hungry modern DSP effects. Audiophile specifications also ensure the musical character of the most sensitive vintage stompboxes is preserved. This wide spectrum of flexibility with each output means less guesswork when connecting your pedals.

Expandable
Never run out of outputs. Pedal Power 3 PLUS features two X-LINK expansion ports for adding up to 16 isolated outs. Simply connect a Pedal Power X4 or X8 to X-LINK to expand the capacity of your power supply as your pedalboard grows.

Goes Anywhere
The low-profile, ultra-lightweight design of Pedal Power 3 PLUS easily mounts to any pedalboard, adding an almost undetectable amount of weight. Operating at any input voltage 100V-240VAC, Pedal Power 3 PLUS makes international touring convenient and hassle-free. No voltage converters needed. Just hit the road, plug in, and rock out.

Pedal Power® 3 PLUS features:
- 12 isolated 500mA DC outputs • 10 x 9V, 2 x Switchable 9V/12V
- X-LINK expansion ports connect Pedal Power X4 and X8 units to add up to 16 isolated outputs
- Powers standard battery operated and high current DSP effects
- 100V-240VAC operation for international touring
- Audiophile-quality power ensures pedals sound and perform their best
- Zero noise hybrid DC transformer design with linear regulation
- Ultra-lightweight, low-profile aluminum construction
- Includes DC power cable kit and detachable AC line cable
- Dimensions: 7” x 3.4” x 1.5” (178 x 86 x 38 mm)
- Weight: 1.0 lbs. (450g)
- 5 Year Warranty*
- Made in the U.S.A.
